Processor-FPGA Communication: FPGA Part

Date:

12 Aug 2019

Corresponding Project Folder

Dependency

• DE10 Nano Development Board Website

• Quartus (For FPGA part) [I am using Quartus Lite 18.1]

• C Programming (For Processor part)

What is the problem ?

• Before Cyclone V, FPGAs I used are independent. So I used SPI, UART etc. to handle communication with Processors

• In Cyclone V, Processor (Called HPS) and FPGA are put on the same chip (Known as SoC)

• So we use a communication interface with much better performance: AXI (Advanced eXtensible Interface)

• The key to AXI is the share of memory

FPGA Part

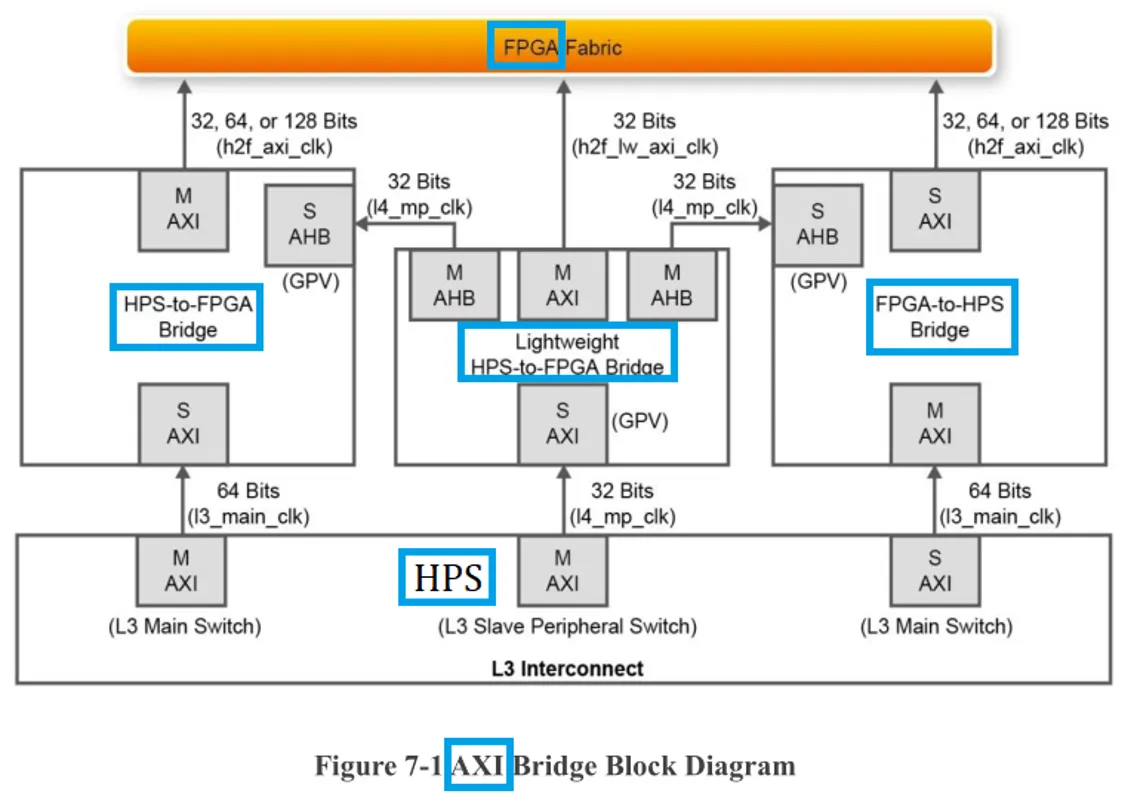

Step 1 AXI Bridge Block Diagram

Step 2 To design the entire system from scratch is hard, We only need to modify the Basis Design

• Download file DE10-Nano CD-ROM from DE10 Nano Development Board Website

• The Basis Design files can be found in DemonstrationsSoC_FPGADE10_NANO_SoC_GHRD folder

• Open DE10_NANO_SoC_GHRD.qpf with Quartus

Step 3 Map Memory Address to Physical Pins

• Go to Quartus >> Tools >> Platform Designer

• A open file window should pop up, choose file soc_system.qsys

• The following figures should explain themselves

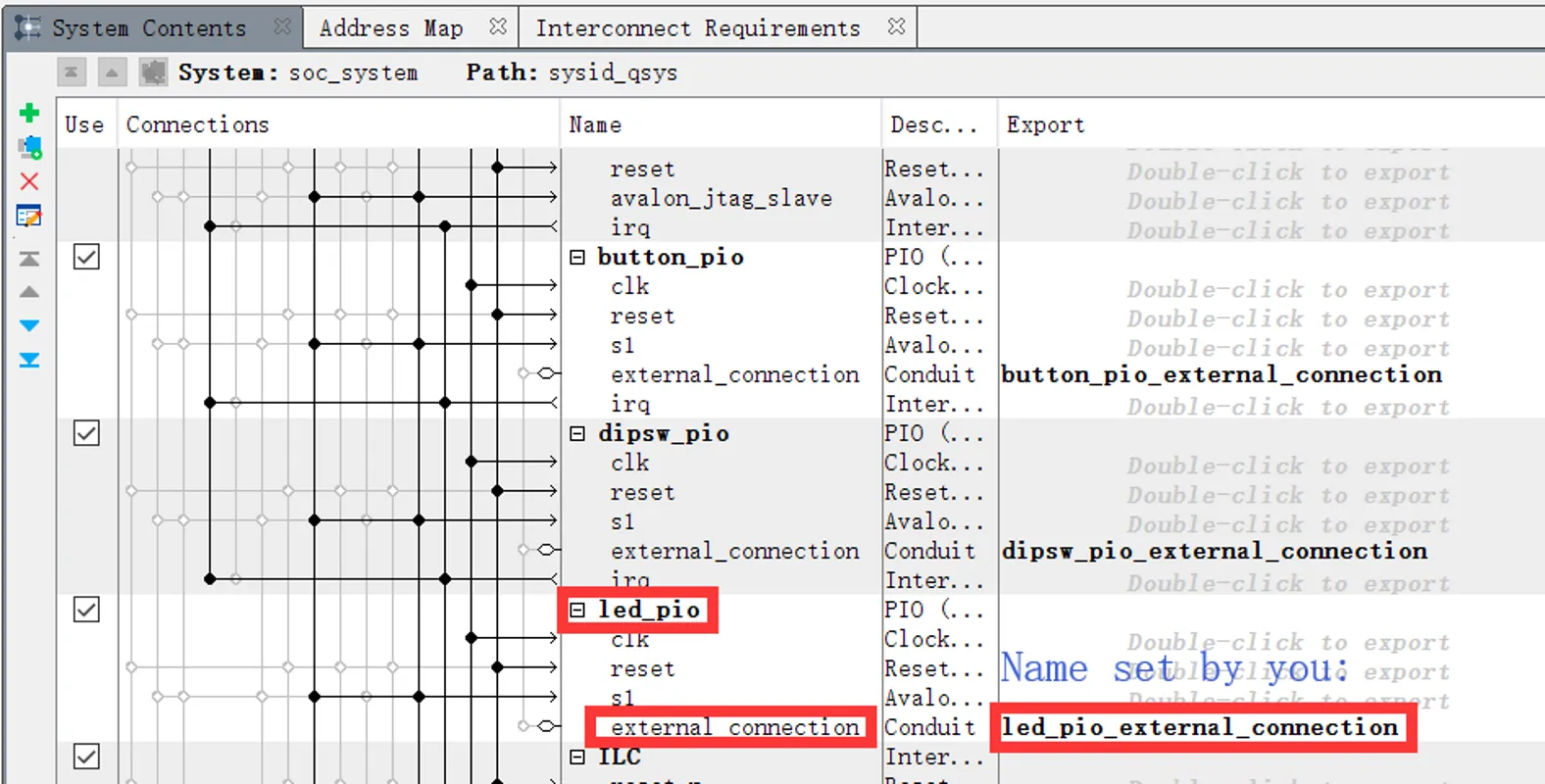

At System Contents set the name led_pio_external_connection

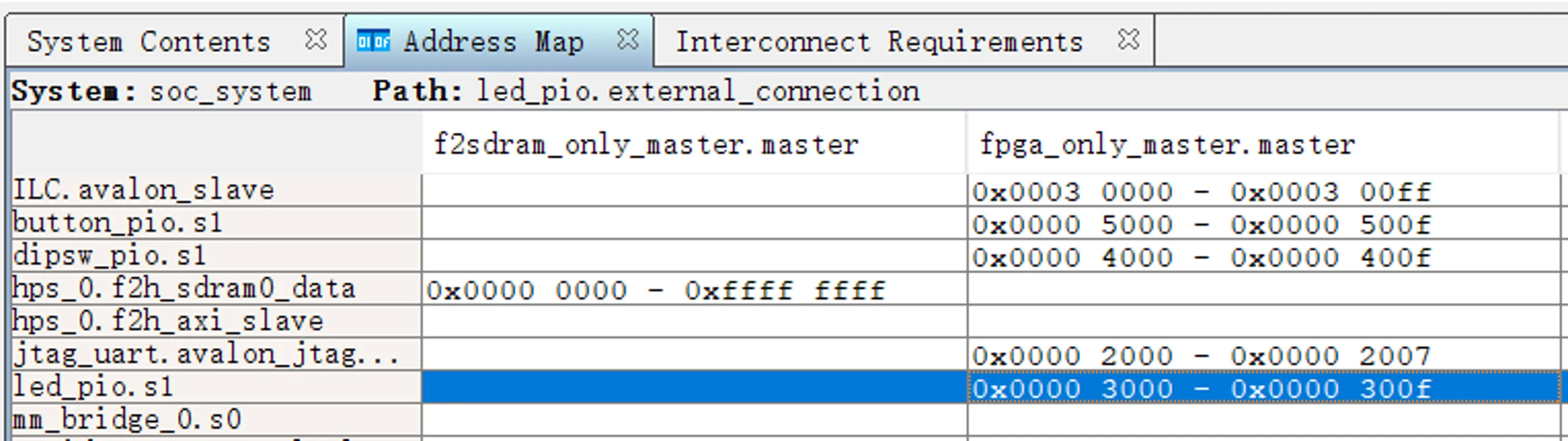

At Address Map define address for led_pio

• Now go back to Quartus from Platform Designer, open the Verilog file DE10_NANO_SoC_GHRD.v

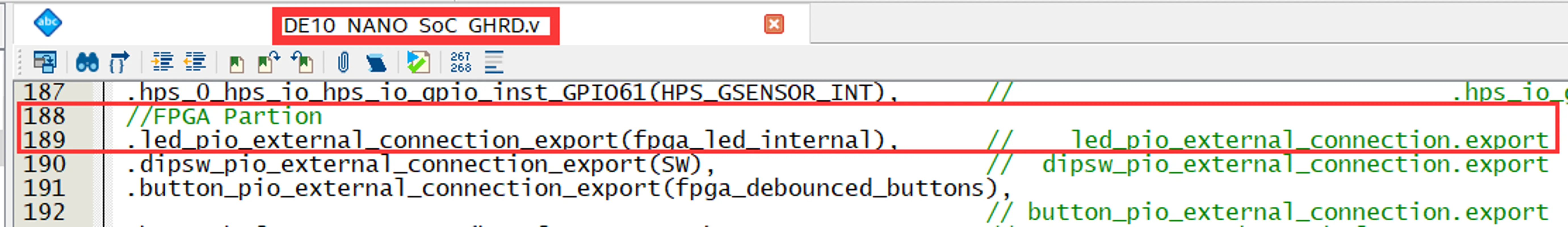

In DE10_NANO_SoC_GHRD.v file we connect led_pio_external_connection_export to fpga_led_internal

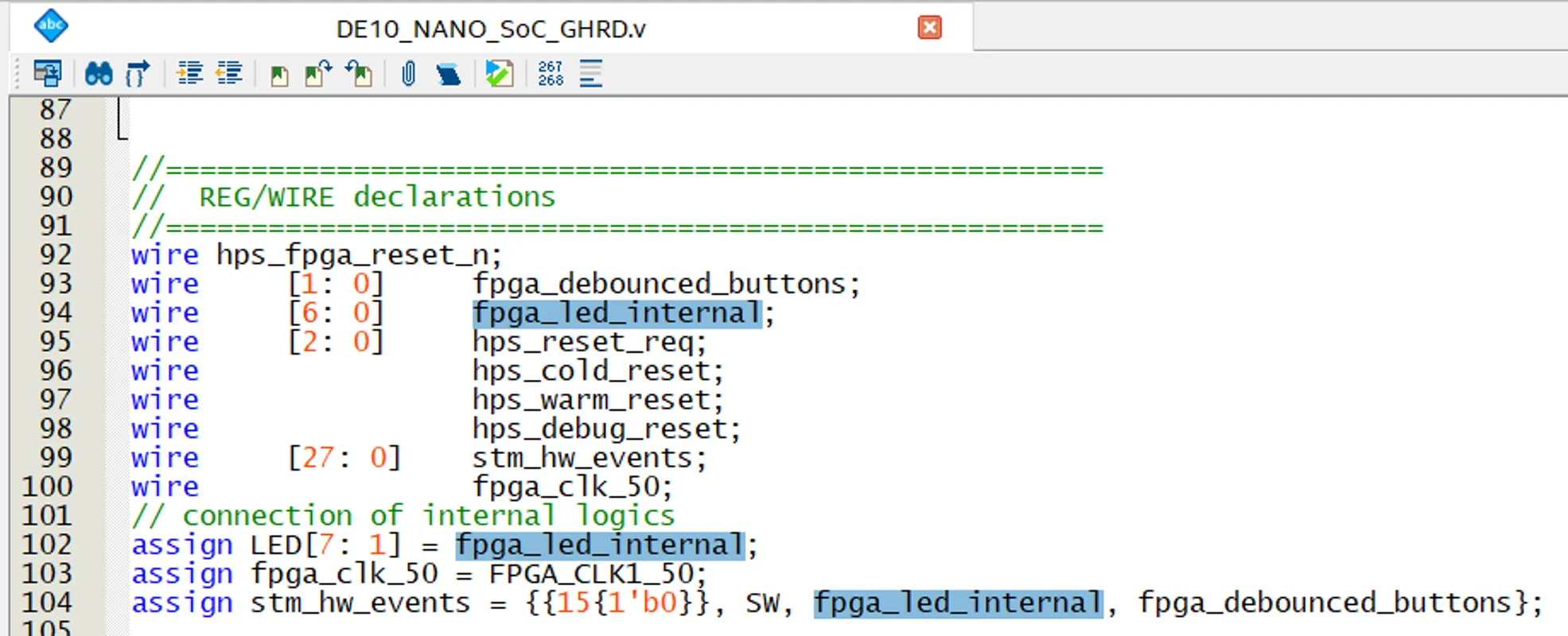

In DE10_NANO_SoC_GHRD.v file we connect fpga_led_internal to LED

• Now open Pin Planner, refer to file Pin Map html

Here we connect LED to Physical Pins on FPGA

Now we know how to map Memory Address to Physical Pins, these Memory Address will be directly used in C Programs later

Step 4 Generate >> TCL >> Compile >> Program

• Platform Designer >> Generate >> Generate HDL… >> Generate. This automatically generates Verilog files which you would have to write yourself if you don’t use Platform Designer

• .tcl files are already executed in GHRD project, so you can skip this step. But if the project is not based on the GHRD project: Quartus >> Tools >> Tcl Scripts…, select _parameters.tcl and _pin_assignments.tcl and Run

• Quartus >> Processing >> Start Compilation, DE10_NANO_SoC_GHRD.sof will be generated output_files folder

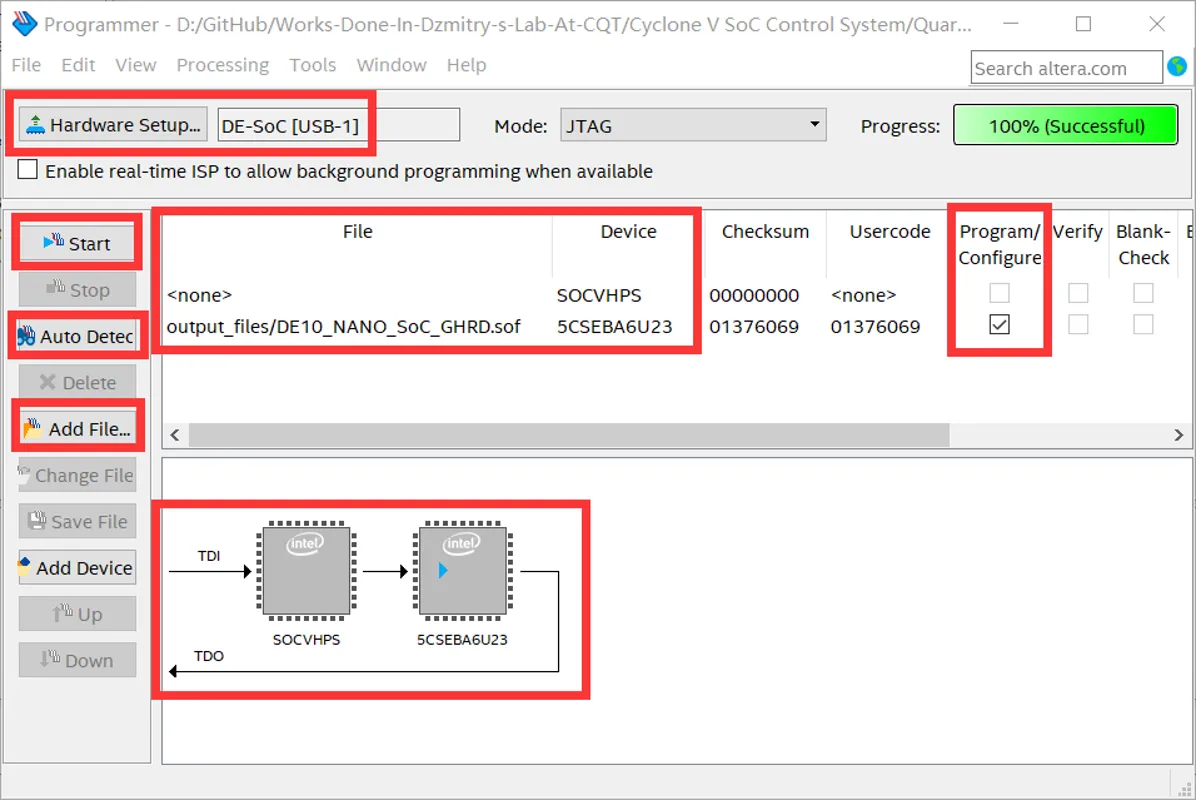

• Finally just use Quartus >> Tools >> Programmer to program the board
