Verilog My16ChannelCounter

Date:

11 Oct 2019

What is the idea?

• The following is just a simple counter

• So it counts signals from 16 channels, each with 32 bits, then group them to 512 bits as output

• Other than the 16 bits input, we also have eight 16 bits inputs, these are masks to group certain channels together. Of course, you will also find the corresponding eight outputs

Simple Counter Submodule

module Counter(
  input clk,
  input in,
  output reg [31:0] count
);
  // Begin internal signals
    reg [31:0] cnt;
    reg lastIn;
  // End internal signals

  // Begin count
    always @(posedge clk) begin
      if(in) begin
        cnt <= cnt +1;
      end
      else if(lastIn==1 && in==0) begin
        count <= cnt;
        cnt <= 0;
      end
      lastIn<=in;
    end
  // End count
endmodule

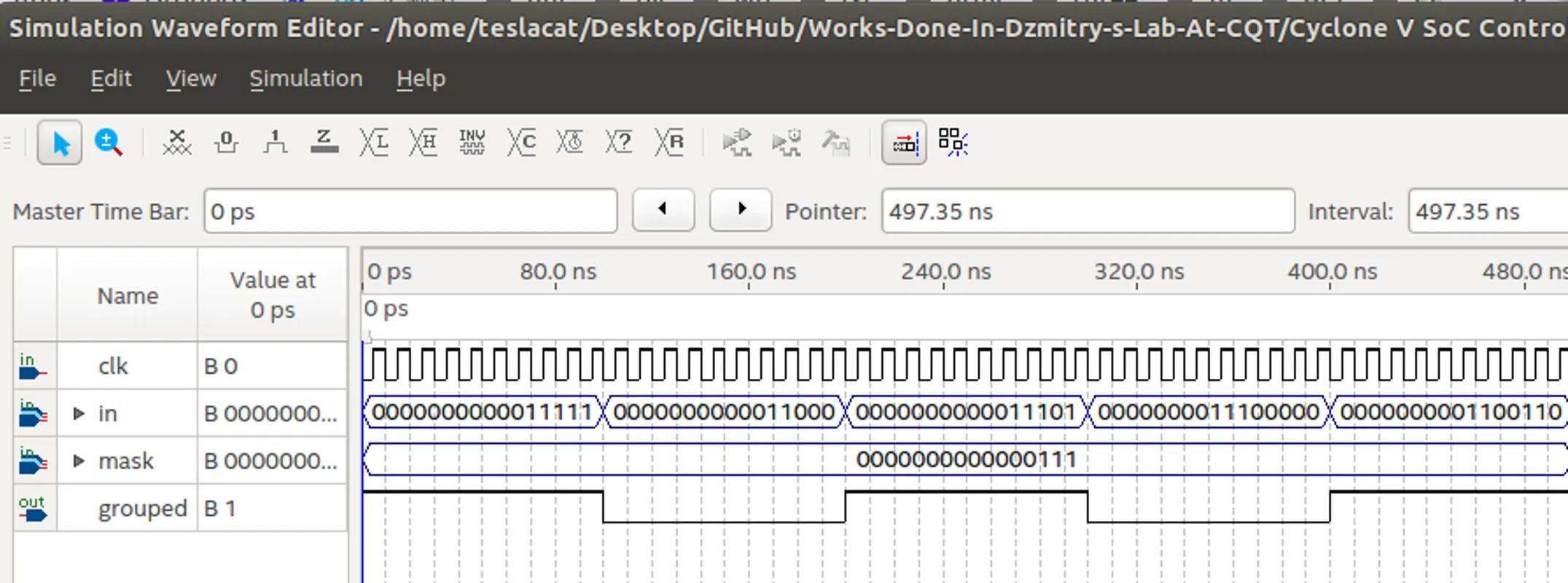

Simple Grouper Submodule

module Grouper(
  input [15:0] mask,
  input [15:0] in,
  output grouped
);
  assign grouped = (mask & in) ? 1:0;
endmodule

• I know you might wonder why I have to create a one line module

• Trust me, when you do big projects, coding style is very important!

Main Module

module My16ChannelCounter(
  input clk,
  // counters
  input [15:0] in16Channels,
  output [511:0] zippedCount,
  // groupers
  input [15:0] mask0,
  input [15:0] mask1,
  input [15:0] mask2,
  input [15:0] mask3,
  input [15:0] mask4,
  input [15:0] mask5,
  input [15:0] mask6,
  input [15:0] mask7,
  output [7:0] grouped
);
  // Begin internal signals
    // for Counter
    wire [31:0] wire_count0,wire_count1,wire_count2,wire_count3;
    wire [31:0] wire_count4,wire_count5,wire_count6,wire_count7;
    wire [31:0] wire_count8,wire_count9,wire_count10,wire_count11;
    wire [31:0] wire_count12,wire_count13,wire_count14,wire_count15;
    // for Grouper
    wire wire_grouped0,wire_grouped1,wire_grouped2,wire_grouped3;
    wire wire_grouped4,wire_grouped5,wire_grouped6,wire_grouped7;
  // End internal signals

  // Begin Counter
    Counter channel0(.clk(clk),.in(in16Channels[0]),.count(wire_count0));
    Counter channel1(.clk(clk),.in(in16Channels[1]),.count(wire_count1));
    Counter channel2(.clk(clk),.in(in16Channels[2]),.count(wire_count2));
    Counter channel3(.clk(clk),.in(in16Channels[3]),.count(wire_count3));
    Counter channel4(.clk(clk),.in(in16Channels[4]),.count(wire_count4));
    Counter channel5(.clk(clk),.in(in16Channels[5]),.count(wire_count5));
    Counter channel6(.clk(clk),.in(in16Channels[6]),.count(wire_count6));
    Counter channel7(.clk(clk),.in(in16Channels[7]),.count(wire_count7));
    Counter channel8(.clk(clk),.in(in16Channels[8]),.count(wire_count8));
    Counter channel9(.clk(clk),.in(in16Channels[9]),.count(wire_count9));
    Counter channel10(.clk(clk),.in(in16Channels[10]),.count(wire_count10));
    Counter channel11(.clk(clk),.in(in16Channels[11]),.count(wire_count11));
    Counter channel12(.clk(clk),.in(in16Channels[12]),.count(wire_count12));
    Counter channel13(.clk(clk),.in(in16Channels[13]),.count(wire_count13));
    Counter channel14(.clk(clk),.in(in16Channels[14]),.count(wire_count14));
    Counter channel15(.clk(clk),.in(in16Channels[15]),.count(wire_count15));
    assign zippedCount = {
      wire_count15,wire_count14,wire_count13,wire_count12,
      wire_count11,wire_count10,wire_count9,wire_count8,
      wire_count7,wire_count6,wire_count5,wire_count4,
      wire_count3,wire_count2,wire_count1,wire_count0
    };
  // End Counter

  // Begin Grouper
    Grouper group0(.mask(mask0),.in(in16Channels),.grouped(wire_grouped0));
    Grouper group1(.mask(mask1),.in(in16Channels),.grouped(wire_grouped1));
    Grouper group2(.mask(mask2),.in(in16Channels),.grouped(wire_grouped2));
    Grouper group3(.mask(mask3),.in(in16Channels),.grouped(wire_grouped3));
    Grouper group4(.mask(mask4),.in(in16Channels),.grouped(wire_grouped4));
    Grouper group5(.mask(mask5),.in(in16Channels),.grouped(wire_grouped5));
    Grouper group6(.mask(mask6),.in(in16Channels),.grouped(wire_grouped6));
    Grouper group7(.mask(mask7),.in(in16Channels),.grouped(wire_grouped7));
    assign grouped = {
      wire_grouped0,wire_grouped1,wire_grouped2,wire_grouped3,
      wire_grouped4,wire_grouped5,wire_grouped6,wire_grouped7
    };
  // End Grouper
endmodule
