FAILED Processor-FPGA Communication: Using FIFO Processor Part

Warning

The approach used in this part, using FIFO provided by Platform Designer(Qsys), has failed due to the lack of proper example from Altera. I will use FIFO component from Quartus Library instead. Please read Processor-FPGA Communication: Using FIFO Processor Part instead.

Credit

This section is Modified From DE1 SoC ARM HPS and FPGA Addresses and Communication Cornell ece5760

Date:: 20 Aug 2019

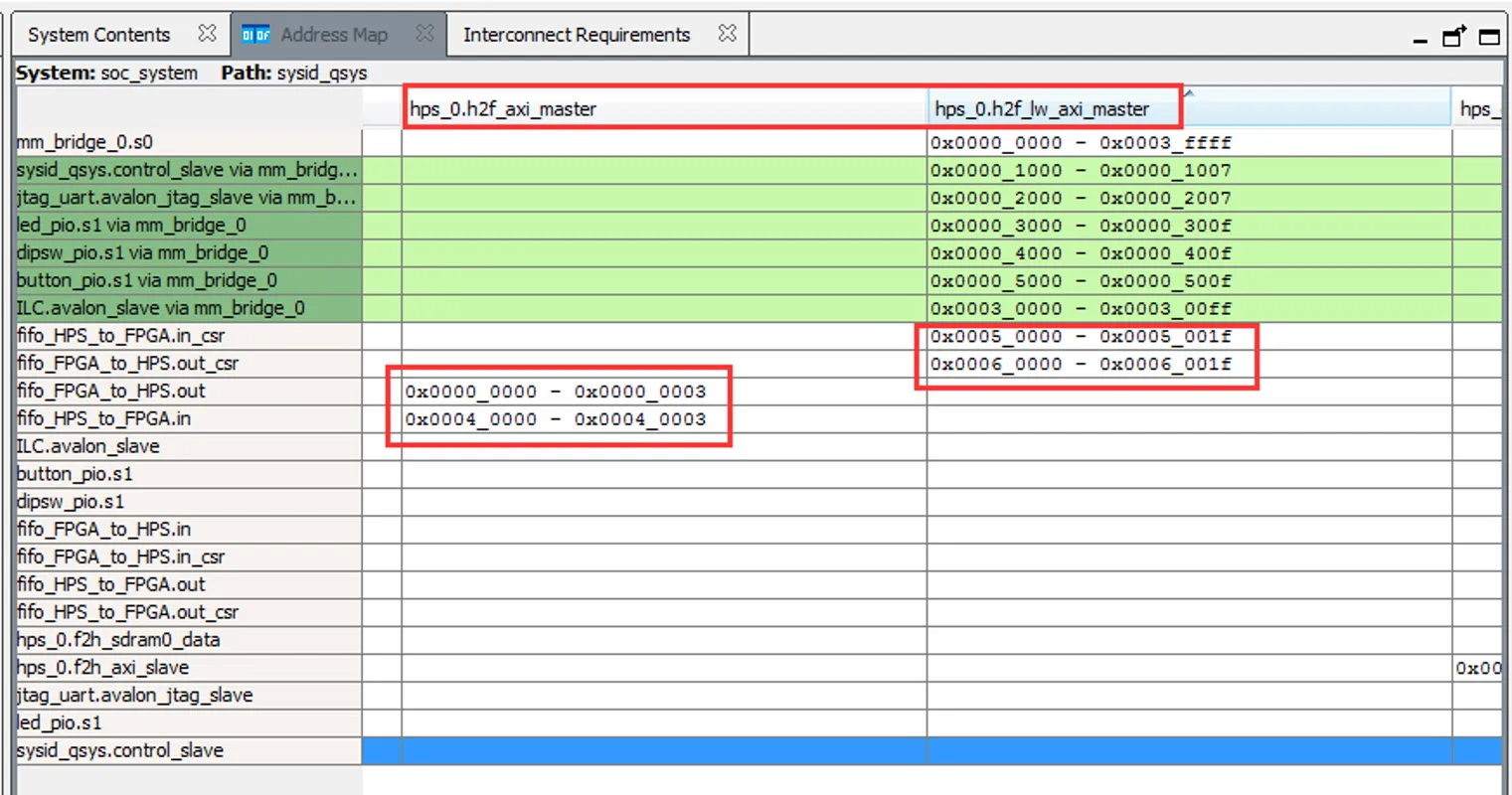

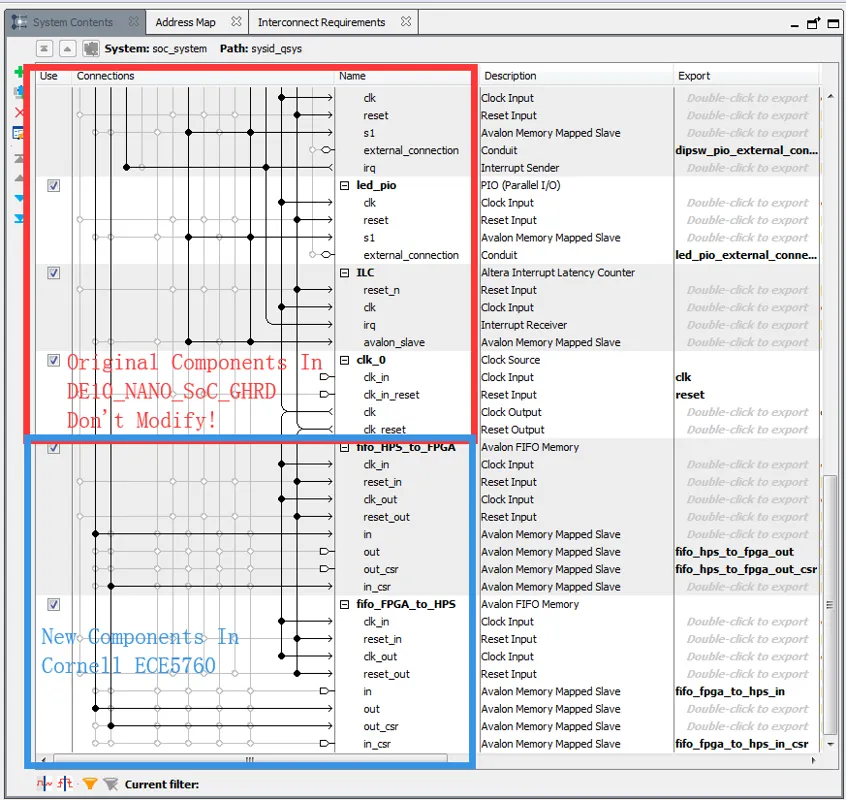

Platform Designer Settings From Last Session

../_images/Stage-2_Mine_Qsys_Address_Map.webp

Processor Code That Uses Above Address Map

The following Quartus Project Stage 2Cornell ECE5760C Code for HPSFIFO_2_prettified.c is modified from the original file FIFO_2.c. However, it is not tested yet since I still have doubt as can be seen below, hopefully my boss can help me with this:

// FIFO details:
//     Depth: 256    Data Width: 32 bits

// From Cornell ECE5760
#include <string.h>
#include <stdlib.h>
#include <sys/types.h>
#include <sys/ipc.h>
#include <sys/shm.h>
#include <sys/time.h>
#include <math.h>

// From Terasic original HPS_FPGA_LED example
#include <stdio.h>
#include <unistd.h> // provides access to the POSIX operating system API
#include <fcntl.h>  // header in the C POSIX library
#include <sys/mman.h> // memory management
#include "hwlib.h" // location: SoC EDS\embedded\ip\altera\hps\altera_hps\hwlib\include
#include "socal/socal.h" // location: SoC EDS\embedded\ip\altera\hps\altera_hps\hwlib\include\soc_cv_av\socal
#include "socal/hps.h"
#include "socal/alt_gpio.h"
#include "hps_0.h"

//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
// Modify the following based on your Qsys File in in Platform Designer

    // The following corresponds to **h2f_axi_master** in Platform Designer
    #define h2f_axi_master_BASE             ( 0xC0000000 )
    #define h2f_axi_master_SPAN             ( 0x04000000 )

    //The following corresponds to **h2f_lw_axi_master** in Platform Designer
    #define HW_REGS_BASE ( ALT_STM_OFST )
    #define HW_REGS_SPAN ( 0x04000000 )
    #define HW_REGS_MASK ( HW_REGS_SPAN - 1 )
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

//====================================
// The following corresponds to **h2f_axi_master** in Platform Designer
//====================================
void *h2f_virtual_base;
volatile unsigned int * FIFO_write_ptr = NULL ;
volatile unsigned int * FIFO_read_ptr = NULL ;
#define FIFO_WRITE           (*(FIFO_write_ptr))
#define FIFO_READ            (*(FIFO_read_ptr))

//====================================
// The following corresponds to **h2f_lw_axi_master** in Platform Designer
//====================================
void *h2f_lw_virtual_base;
volatile unsigned int * FIFO_write_status_ptr = NULL ;
volatile unsigned int * FIFO_read_status_ptr = NULL ;
#define WRITE_FIFO_FILL_LEVEL (*FIFO_write_status_ptr)
#define READ_FIFO_FILL_LEVEL  (*FIFO_read_status_ptr)
#define WRITE_FIFO_FULL       ((*(FIFO_write_status_ptr+1))& 1 )
#define WRITE_FIFO_EMPTY      ((*(FIFO_write_status_ptr+1))& 2 )
#define READ_FIFO_FULL        ((*(FIFO_read_status_ptr+1)) & 1 )
#define READ_FIFO_EMPTY       ((*(FIFO_read_status_ptr+1)) & 2 )
#define WAIT {}

//====================================
// Helper Functions
//====================================

// Write and Read: **a** is data to be written, **b** is result(success/fail)
#define FIFO_WRITE_BLOCK(a)         {while (WRITE_FIFO_FULL){WAIT};FIFO_WRITE=a;}
#define FIFO_READ_BLOCK(a)          {while (READ_FIFO_EMPTY){WAIT};a=FIFO_READ;}
#define FIFO_WRITE_NOBLOCK(a,b)     {b=!WRITE_FIFO_FULL; if(!WRITE_FIFO_FULL)FIFO_WRITE=a;}
#define FIFO_READ_NOBLOCK(a,b)      {b=!READ_FIFO_EMPTY; if(!READ_FIFO_EMPTY)a=FIFO_READ;}

int memoryMapping(){
    // Step 1
    int fd;
    if( (fd = open("/dev/mem",(O_RDWR|O_SYNC))) == -1 ){
        printf( "ERROR: could not open \"/dev/mem\"...\n" );
        return( 1 );
    }

    // **h2f_axi_master** Part
    h2f_virtual_base = mmap( NULL, h2f_axi_master_SPAN, ( PROT_READ | PROT_WRITE ), MAP_SHARED, fd, h2f_axi_master_BASE);
    if( h2f_virtual_base == MAP_FAILED ) {
        printf( "ERROR: mmap() for **h2f_axi_master** failed\n");
        close( fd );  return(1);
    }
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
// Modify the following based on your Qsys File in in Platform Designer
    FIFO_write_ptr =(unsigned int *)(h2f_virtual_base);
    FIFO_read_ptr  =(unsigned int *)(h2f_virtual_base + 0x40000);
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

    // **h2f_lw_axi_master** Part
    h2f_lw_virtual_base = mmap( NULL, HW_REGS_SPAN, ( PROT_READ | PROT_WRITE ), MAP_SHARED, fd, HW_REGS_BASE );
    if( h2f_lw_virtual_base == MAP_FAILED ) {
        printf( "ERROR: mmap() for **h2f_lw_axi_master** failed...\n" );
        close( fd );  return(1);
    }
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
// Modify the following based on your Qsys File in in Platform Designer
    FIFO_write_status_ptr = (unsigned int *)(h2f_lw_virtual_base + 0x50000);
    FIFO_read_status_ptr  = (unsigned int *)(h2f_lw_virtual_base + 0x60000);
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

    return(0);
}

int repeatWriting(){
    int i;
    while(1){
        printf( "repeatWriting: ");
        scanf("%d", &i);
        FIFO_WRITE_BLOCK(i);
        printf("Fill levels: WRITE_FIFO=%d READ_FIFO=%d\n", WRITE_FIFO_FILL_LEVEL, READ_FIFO_FILL_LEVEL);
    }
    return(0);
}

//====================================
// Main Function
//====================================

int main(void){
    memoryMapping();
    repeatWriting();
    return(0);
}
